When industrial automation equipment requires precise cylinder position feedback, inaccurate detection can result in production interruptions, machine errors, and increased maintenance costs.
A High-Accuracy Cylinder Magnetic Switch provides reliable and accurate position detection for pneumatic cylinders by sensing the magnetic field generated by the internal piston magnet. It enables automation systems to monitor cylinder extension and retraction status, improving machine stability, operational efficiency, and production reliability.
Huayifeng specializes in the research, development, manufacturing, and sales of industrial automation sensors. With more than 16 years of industry experience, over 3,000 product models, and a global network of distributors, Huayifeng provides standard and customized sensor solutions for machinery manufacturing, mechanical processing, 3C electronics, semiconductor, new energy, logistics, and packaging industries.
What Is a High-Accuracy Cylinder Magnetic Switch?

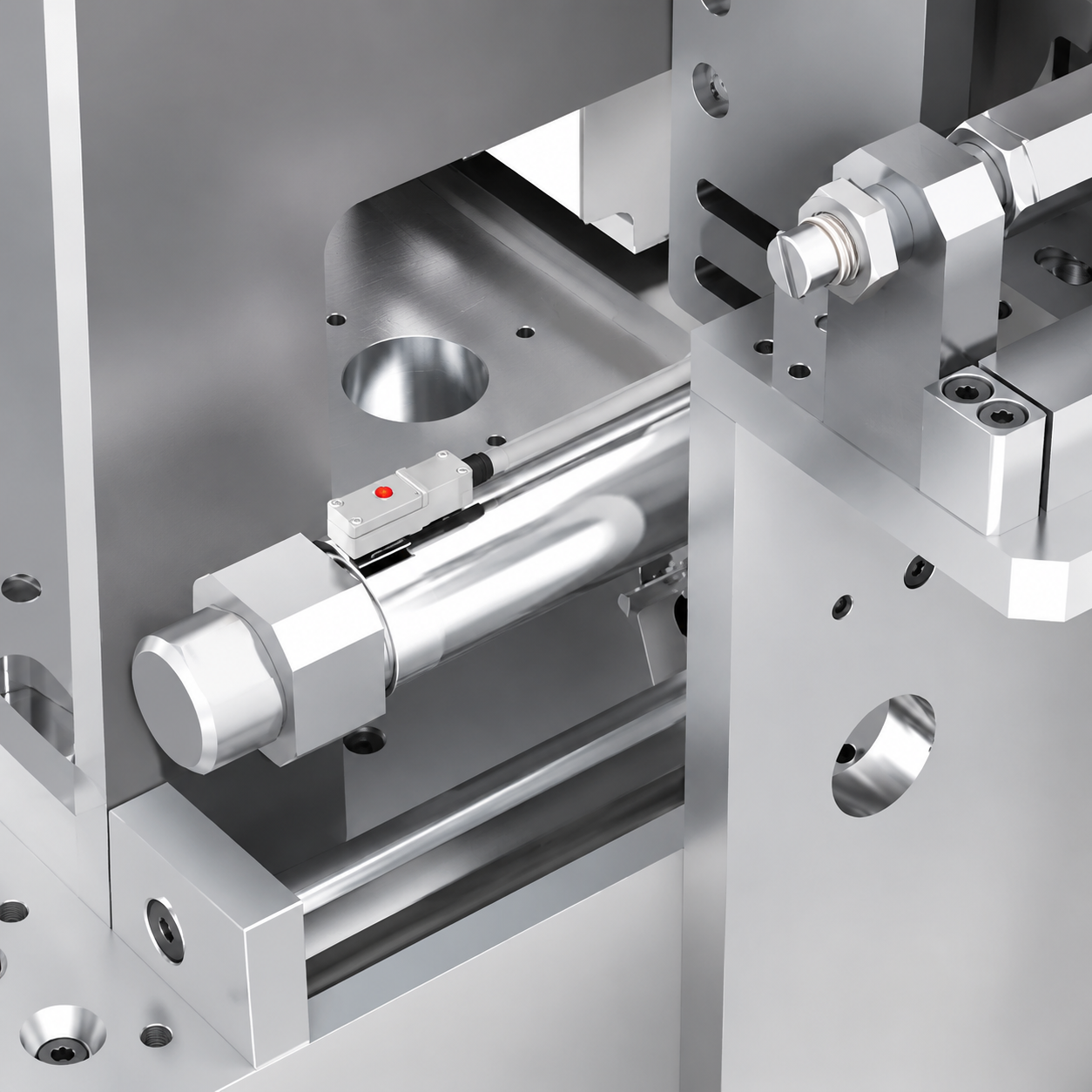

A High-Accuracy Cylinder Magnetic Switch, also known as a pneumatic cylinder magnetic switch or cylinder position sensor, is an industrial sensor designed to detect the movement and position of pneumatic cylinder pistons.
Unlike traditional mechanical switches that rely on physical contact, a cylinder magnetic switch uses non-contact magnetic induction technology. When the piston with a built-in magnet moves to a specific position, the sensor detects the magnetic field change and sends an electrical signal to the PLC or control system.
This allows automated equipment to achieve:
- Accurate cylinder extension and retraction detection
- Stable position feedback signals
- Faster response during machine operation
- Reduced mechanical wear
- Improved automation control accuracy
Huayifeng MSC Series Cylinder Magnetic Switch is designed for industrial applications requiring compact installation, stable performance, and long service life.
MSC Series Cylinder Magnetic Switch Features
Huayifeng developed the MSC Series to meet the requirements of modern industrial automation systems. The product combines high detection accuracy, strong environmental protection, and flexible installation options.
IP67 Protection and Reliable Anti-Interference Performance
Industrial production environments often include dust, oil, vibration, and moisture, which may affect sensor performance.
The MSC Series adopts a rubber-coated sealing process and achieves an IP67 protection rating, allowing reliable operation in demanding industrial conditions.
Typical application environments include:
- Automated production equipment
- Mechanical processing systems
- Assembly lines
- Packaging machinery
- Oil-resistant industrial environments
The sensor also provides strong anti-electromagnetic interference performance, ensuring stable signal transmission even in complex electrical environments.
Compact Design with Flexible Installation Options
Space limitations are common in industrial equipment design. The MSC Series features an integrated injection molding structure that improves mechanical strength while maintaining a compact size.
Different housing designs are available to match various pneumatic cylinder structures:
- B type
- E type
- H type
- J type
- G type
- T type
The cylinder magnetic switch supports multiple cylinder mounting solutions, including:
- T-slot cylinders
- Ø4 C-slot cylinders
- Square-slot cylinders
- L-slot cylinders
This flexible design allows engineers to select suitable sensors according to different automation equipment requirements.
Technical Specifications of MSC Series Magnetic Cylinder Switch
| Parameter | Specification |
|---|---|
| Product Type | Cylinder Magnetic Switch |
| Detection Method | Magnetic induction cylinder position detection |
| Protection Rating | IP67 |
| Magnetic Induction Intensity | 40–800Gs |
| Switching Frequency | 900Hz |
| Voltage Range | 5–30VDC / 10–30VDC |
| Operating Temperature | -10°C to +70°C |
| Cable Material | Oil-resistant PUR cable |
| Output Type | Two-wire, NPN three-wire, PNP three-wire |
These specifications enable the MSC Series to meet different industrial automation requirements, from standard pneumatic equipment to customized production systems.
Why Choose Huayifeng as a Cylinder Magnetic Switch Manufacturer?
Huayifeng is an experienced industrial automation sensor manufacturer specializing in high-performance sensing solutions for global automation industries.
The company provides reliable cylinder magnetic switch solutions supported by:
- More than 16 years of sensor R&D and manufacturing experience
- Over 100 national invention patents, utility models, design patents, and software copyrights
- 40 professional R&D engineers
- 3,000+ product models
- More than 150 distributors worldwide
- ISO 9001 Quality Management System certification
- ISO 14001 Environmental Management System certification
- ISO 45001 Occupational Health and Safety System certification
- CE, RoHS, TUV, and UL certifications
With advanced manufacturing capabilities and customized development experience, Huayifeng supports OEM and application-specific sensor requirements for industrial equipment manufacturers.
How to Select the Right Pneumatic Cylinder Magnetic Switch?
Choosing the correct pneumatic cylinder magnetic switch requires consideration of cylinder type, electrical requirements, and operating environment.
1. Identify the Cylinder Slot Type
Confirm the cylinder structure before selecting the sensor.
Common cylinder types include:
- T-slot cylinders
- C-slot cylinders
- Square-slot cylinders
- L-slot cylinders
Selecting the correct mounting structure ensures secure installation and accurate detection.
2. Select the Correct Output Type
Different automation control systems require different electrical outputs.
Common options include:
- Two-wire magnetic switches
- NPN output sensors
- PNP output sensors
The sensor output should match the PLC or control system requirements.
3. Consider the Working Environment
Industrial environments may expose sensors to:
- Oil
- Dust
- Moisture
- Temperature changes
- Electromagnetic interference
For harsh environments, select sensors with suitable protection ratings and cable materials.
4. Confirm Electrical Parameters
Before installation, verify:
- Operating voltage
- Switching frequency
- Response requirements
- Connection method
Correct parameter matching helps improve system reliability.
Cylinder Magnetic Switch vs Traditional Position Detection Methods
| Comparison | Cylinder Magnetic Switch | Traditional Mechanical Switch |
|---|---|---|
| Detection Method | Non-contact magnetic detection | Physical contact detection |
| Service Life | Long service life | Mechanical wear possible |
| Maintenance Requirement | Low maintenance | Higher maintenance |
| Installation Flexibility | Multiple cylinder mounting options | Limited installation flexibility |
| Protection Performance | IP67 available | Depends on structure |
For modern automation systems, a magnetic cylinder switch provides better durability and more stable performance because it eliminates mechanical contact during detection.
Applications of MSC Series Cylinder Position Sensor
Huayifeng MSC Series is widely used in industries requiring accurate motion control and reliable cylinder feedback.
Typical applications include:
- Automated assembly equipment
- Robotic production lines
- Packaging machinery
- Semiconductor manufacturing equipment
- New energy production systems
- Precision mechanical processing equipment
- Logistics automation systems
By providing accurate cylinder position feedback, the sensor helps manufacturers improve production consistency, reduce downtime, and optimize automation processes.
FAQ
1. What does a cylinder magnetic switch detect?
A cylinder magnetic switch detects the position of pneumatic cylinder pistons by sensing changes in the magnetic field generated by the internal piston magnet.
2. What is the difference between a cylinder magnetic switch and a proximity sensor?
A cylinder magnetic switch is specifically designed for pneumatic cylinders and detects piston movement through magnetic induction. A proximity sensor is generally used for detecting objects or metal targets in broader industrial applications.
3. Is MSC Series suitable for harsh industrial environments?
Yes. The MSC Series features IP67 protection, anti-interference performance, and oil-resistant PUR cables, making it suitable for demanding industrial automation environments.
Conclusion
Selecting the right High-Accuracy Cylinder Magnetic Switch is essential for achieving stable pneumatic cylinder position detection and improving industrial automation performance.
With advanced manufacturing technology, professional R&D capabilities, international certifications, and customized sensor development experience, Huayifeng provides reliable cylinder magnetic switch solutions for automation equipment manufacturers worldwide.
Whether you need standard magnetic cylinder switches or customized industrial sensor solutions, Huayifeng can help optimize your equipment performance.
Contact Huayifeng today to discuss your cylinder detection requirements and receive a customized MSC Series sensor solution for your automation applications.
