Two detection modes, selectable based on application.

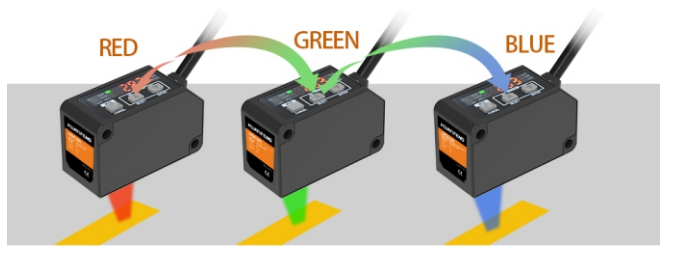

Two detection modes are available: color mode and color mark mode. The color mark mode automatically selects the optimal RGB color.
Digital Display

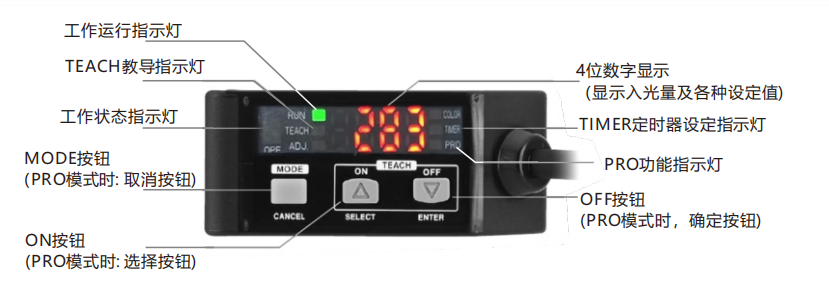

The 4-digit display allows you to confirm the amount of light entering the object and the background. The reference value can be adjusted to suit your needs, making setup simple.
Simple Setup

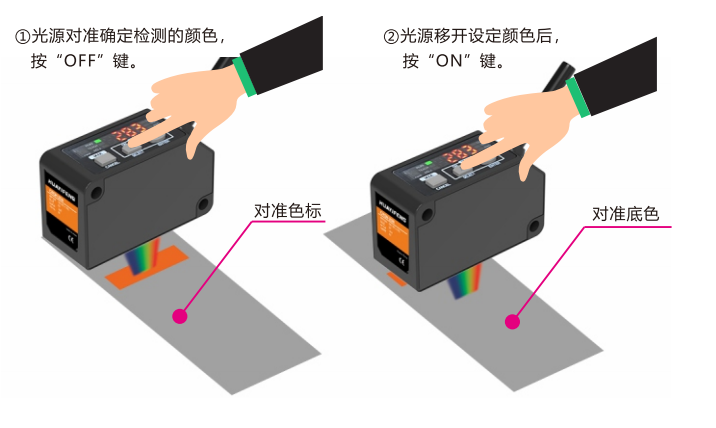

In color mark mode, simply aim the light source at the desired color of the object and press the ON or OFF button to complete the setup. Easy to use.

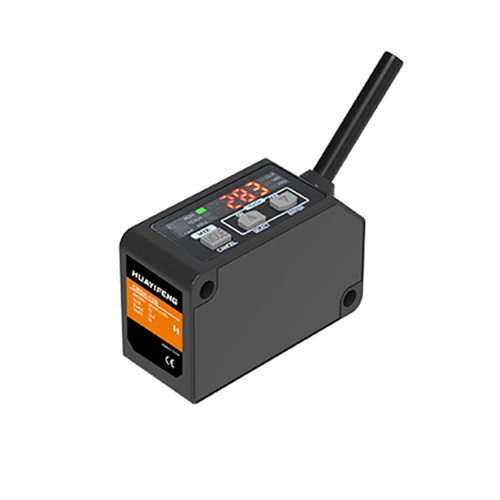

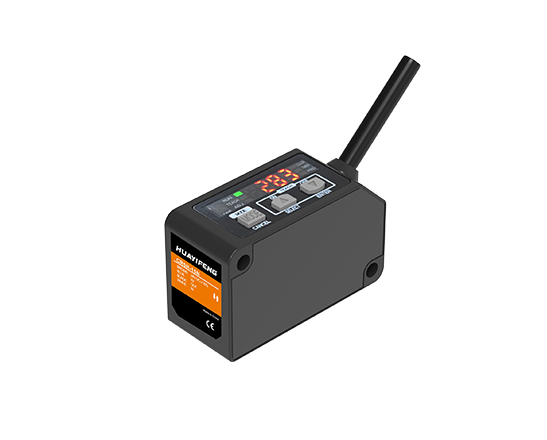

Compact design saves space

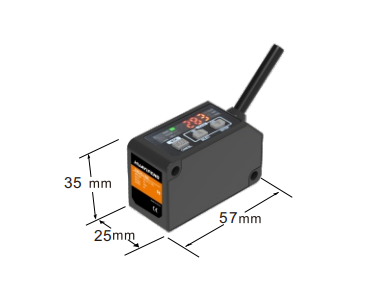

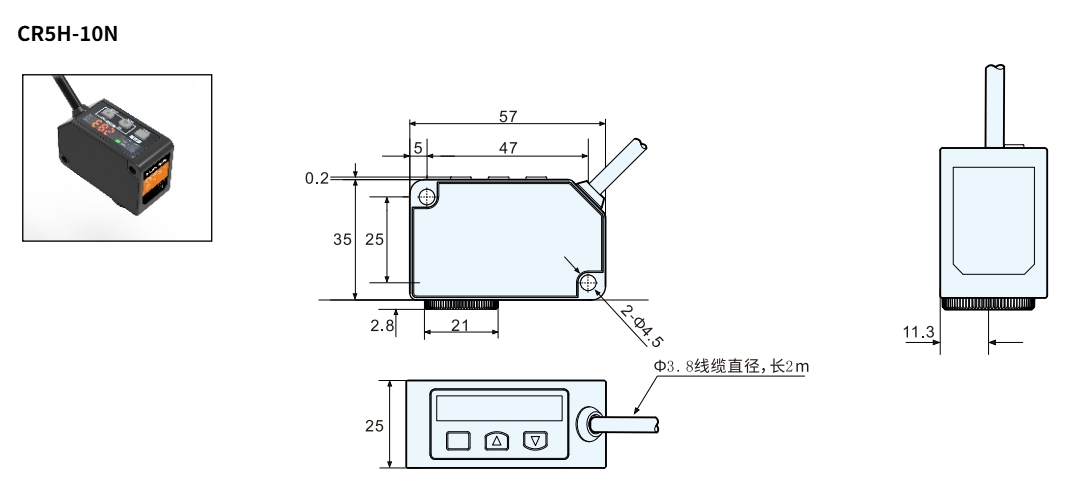

Measuring 57mm x 25mm x 35mm, it easily fits into existing equipment.
Sensing distance: 10 ± 3 mm
Light source: RGB, three-color, four-element LED
Mode switch input: Color mark mode: 2-point teaching; Color mode: 1-point teaching
Detection method: Light-on/Dark-on (key menu selection)
Power supply voltage: 12-24 V DC + 10%, ripple P-P less than 10%
Response time: Color mark mode: 35 μs, Color mode: 80 μs
Digital display: 4-digit LED
Insulation resistance: 20 MΩ minimum (DC 500 megohmmeter) between charging unit and housing
Withstand voltage: AC 1000 V/1 min, 50-60 Hz, between charging unit and housing
Delay function: On delay, off delay
IP rating: IP65

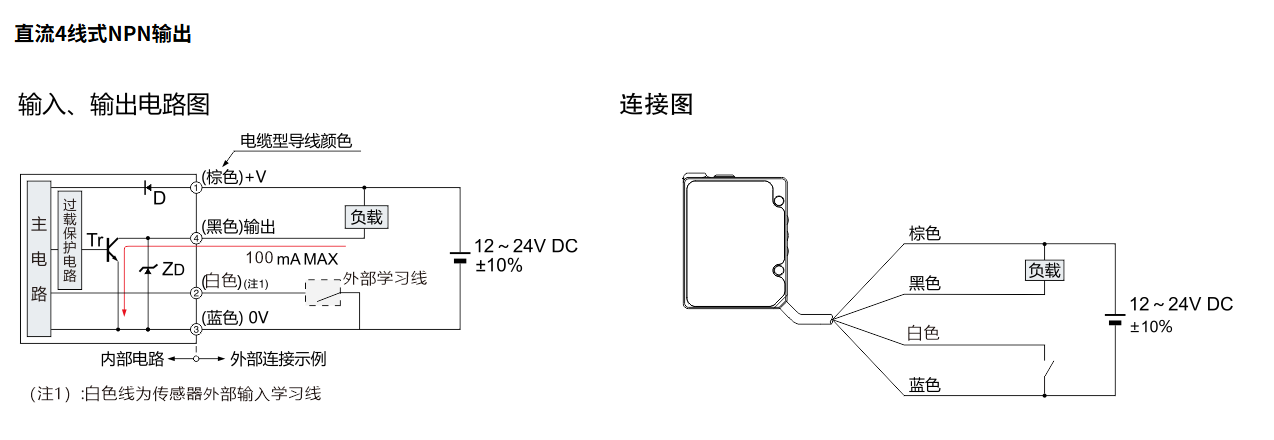

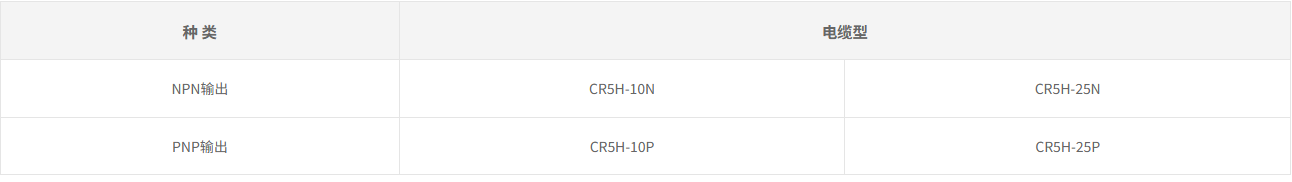

Control output: NPN/PNP open collector, 24 V, maximum 100 mA (main unit only)
Ambient temperature Operating: -10°C to +55°C (no icing or condensation); Storage: -20°C to +70°C (no icing or condensation). Ambient Humidity: Operating: 35% to 85% RH, Storage: 35% to 85% RH. Ambient Brightness: Incandescent light, maximum 20,000 lux; Sunlight, maximum 30,000 lux. Protection: Surge protection, short-circuit protection, and reverse polarity protection. Vibration Resistance: 10 to 55 Hz, double amplitude: 1.5 mm, 2 hours in each of the X, Y, and Z axes. Shock Resistance: 500 m/s², double amplitude, 3 times in each of the X, Y, and Z directions. Housing Material: ABS + PC. Cable: PVC, standard length: 2 m. Weight: Approximately 70 g.
