Stable Detection
Automatically mixes and generates the required light source, enabling stable color detection.
Three Identification Methods
Different products can be identified using brightness, color, or both. Over 1,000 color recognition options are available, accurately detecting subtle color differences. Easy one-touch operation, a time delay function, and external input capabilities ensure stable detection.
Space Saving and Cost Reduction

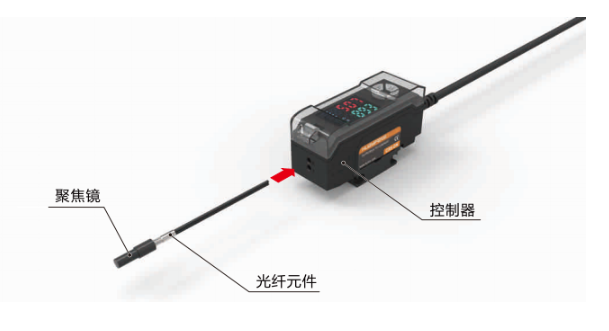

The sensor head utilizes common fiber optic components and focusing lenses, enabling installation in compact spaces while reducing the high costs associated with specialized detection heads.
Simple Setup
The sensor head uses common fiber optic components and focusing lenses, enabling installation in compact spaces while reducing the high costs associated with specialized detection heads.
Cable outlet:

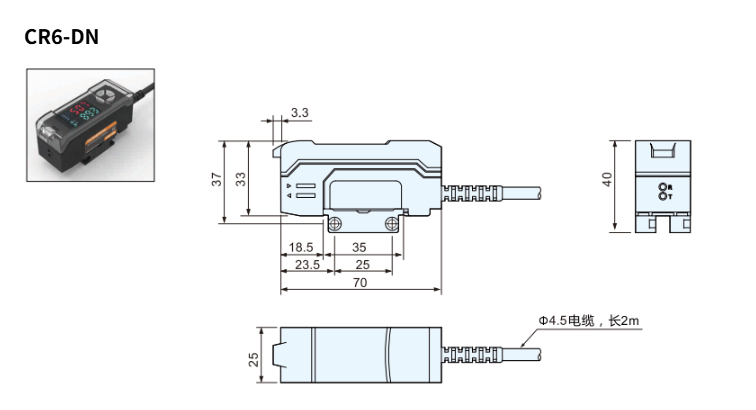

Wire lead-out type (two-meter cable as standard).
Sensing distance: Different fiber models have different sensing distances.
Indicator: Action output: Red / Power indicator: Green.
Mode switch input: Two-point teach in color mark mode; one-point teach in color mode.
Detection method: TIGHT-ON/DARK-ON (switch selectable).

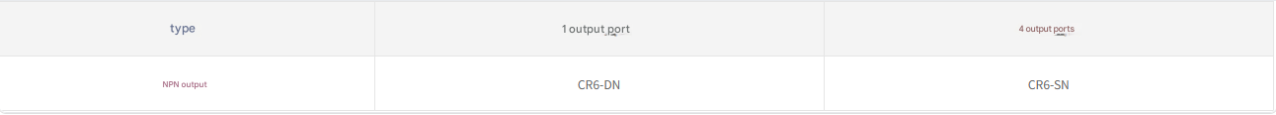

Control output: 1 output port.
Light source: RGB, 4-element LED.
Response time: C mode: 130μs.
Display indicator: Operation indicator: Three primary colors LED, Dual digital display: Dual 7-digit display, with both the threshold (4-digit green LED indicator) and current value (4-digit red LED indicator) illuminated. Current Value Range: 0-999
Detection Method: Automatic color matching detection (C), automatic selection of different light sources for different colors
Delay Function: Automatic color matching detection (C), automatic selection of different light sources for different colors
Delay Function: On-delay, off-delay, one-shot timer

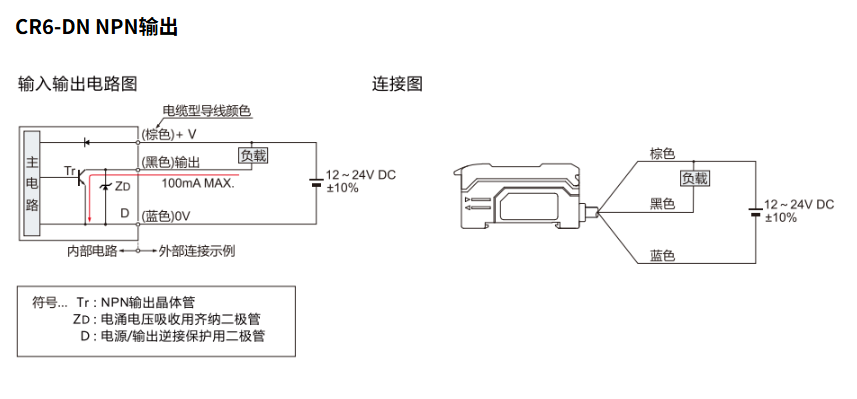

Control Output: Maximum 100mA at 24V (main unit only), maximum 20mA (residual voltage 1V when expansion units are connected)
Power Supply Voltage: 12 to 24VDC + 10%, floating ratio (P-P): maximum 10% level 2
Residual Voltage ≥ 1V
Load Current ≤ 100mA (24VDC)
Insulation Resistance: 20MΩ minimum (DC 500 megohmmeter) between charging unit and case
Withstand Voltage: AC 1000V/1min, 50-60Hz, between charging unit and case
Protection Circuit: Surge protection, short circuit protection, reverse polarity protection
Operating Temperature: -10 to +55°C (non-freezing)
Operating Humidity: -10 to +55°C (non-freezing) 35-85 RH
Ambient Brightness: Incandescent lamp: Maximum: 20,000 lux, Sunlight: Maximum: 30,000 lux
Current Consumption: Standard mode: Maximum 300mW
Vibration Resistance: 10 to 55Hz, double amplitude: 1.5mm, 2 hours each on the X, Y, and Z axes
