Detects a variety of materials.
Can detect metal, plastic, water, stone, wood, and more.
Stable and durable.
Long service life and high stability.
Adjustable detection distance.
The sensitivity adjustment potentiometer allows for easy adjustment of the detection distance.

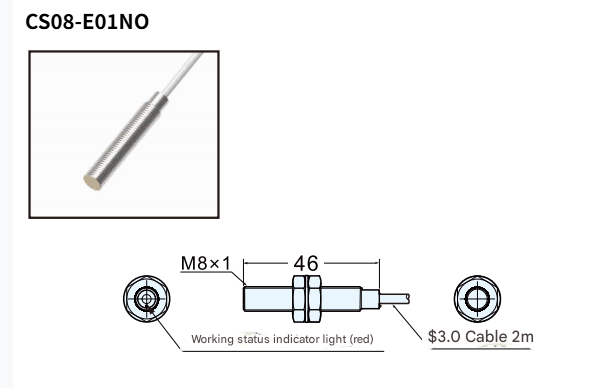

Cable Outlet
Wire Outlet (Standard 2-meter Cable)
Outer Diameter 8mm
Shielded/Unshielded
Sensing Distance 1mm
Detection Object (Iron) 8x8x1mm
Response Frequency 100Hz
Detection Object Magnetic Metal (Detection Distance Reduced for Non-Magnetic Metal)
Hysteresis Distance Less than 15% of the Sensing Distance
Power Supply Voltage 10-30VDC
Leakage Current Less than 0.01mA
Overload Protection 180mA
Maximum Load Current 150mA
No-Load Current <10mA
Voltage Drop <1.5V
Repeatability <5% (sr)
Response Time 1.5ms
Indicator Light: Operation Indicator (Red)
Operation Mode 0: Normally Open, C: Normally Closed

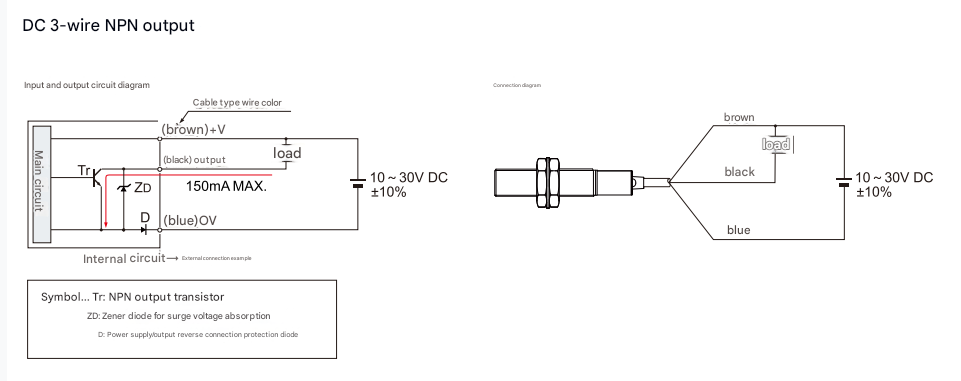

Protection Circuit: Surge Protection, Short Circuit Protection, Reverse Polarity Protection
Ambient Temperature (Operation): -25 to +70°C
Protection Rating: IP67
Vibration (Durability): 10-55Hz, 1.5mm amplitude, 2 hours in each of the X/Y/Z directions
Shock ( Durability: 500m/s² (3 times each in X/Y/Z directions)
Connection: Outlet
Casing: Nickel-plated copper
Detection surface: PBT
