Compatible with various materials.
It can detect metals, plastics, liquids, and other materials, unaffected by the object’s transparency, color, gloss, or surface properties, making it suitable for a wide range of applications.
Suitable for corrosive environments.

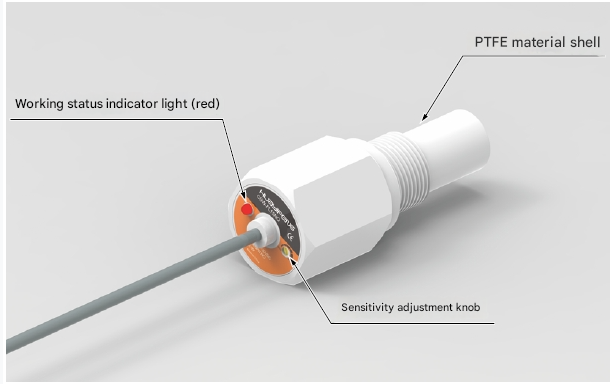

The PTFE housing makes it ideal for measuring the level of acids and solvents. It is resistant to corrosive environments (such as acid vapors). PTFE is resistant to nearly all chemicals and organic solvents.
Adjustable sensing distance.
A sensitivity adjustment potentiometer allows for easy adjustment of the sensing distance.
Stable and durable, reducing maintenance costs.
The durable Teflon housing reduces maintenance costs and withstands harsh environments.
IP67 protection rating:
The IP67 protection structure provides excellent water and oil resistance.
Cable outlet:
Equipped with either a cable outlet or a plug-in cable outlet.
Sensing distance: 2mm to 15mm
Standard sensing object: Fe 24*24*1mm

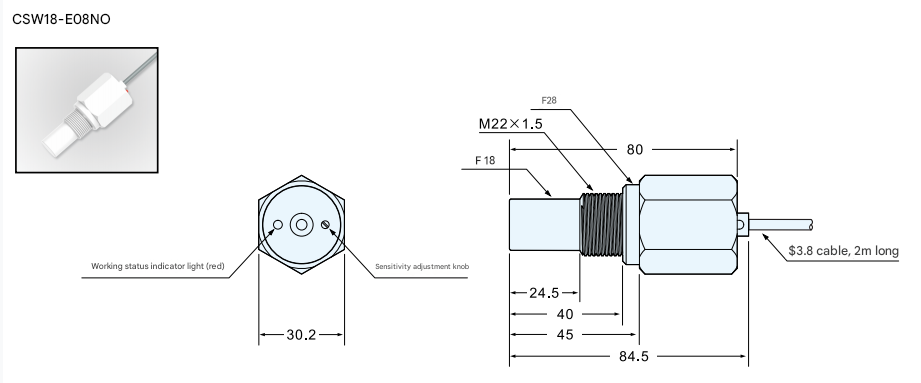

Thread size: M22
Indicator: Red LED
Sensing distance adjustment: 2mm to 15mm

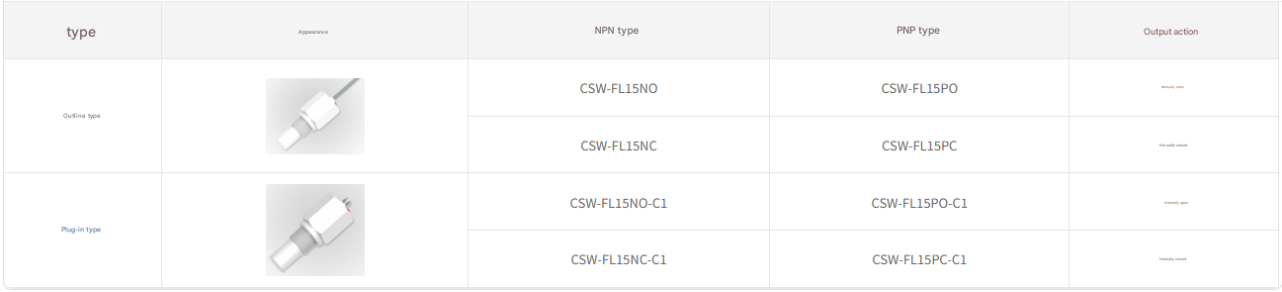

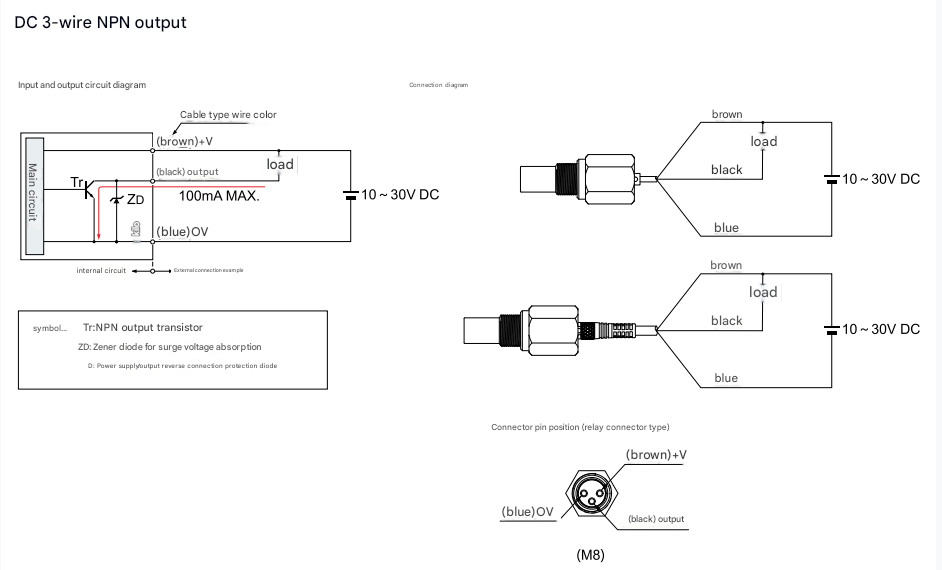

Output mode: Two selectable outputs (ON when detected/ON when not detected)
Switch point deviation: ≤±20%
Operating voltage: 10-30VDC
Response time: 50Hz
Current consumption: ≤10mA
Repeatability: ≤3%
Residual voltage: ≤2V
Load current: 100mA
Protection circuit: Surge protection, short-circuit protection, reverse polarity protection
Hysteresis: 15%
Control output: Two selectable outputs (ON when detected/ON when not detected)
Ambient temperature and humidity: -25°C to +55°C (no condensation or icing), 35% to 95% RH
Protective structure: IP67
Insulation resistance: 50MΩ minimum (DC 500V megohmmeter) between charging unit and housing
Dielectric strength: AC 1000V/1min, 50-60Hz between charging unit and housing. Vibration (durability): 10-55Hz, 1.5mm amplitude, 2 hours each in X, Y, and Z directions. Shock (durability): 500m/s, 10 times each in X, Y, and Z directions. Housing material: Teflon.
