Detects a variety of materials.
It can detect metals, plastics, liquids, and other substances. Detection is unaffected by the object’s transparency, color, gloss, or surface properties, making it widely applicable.

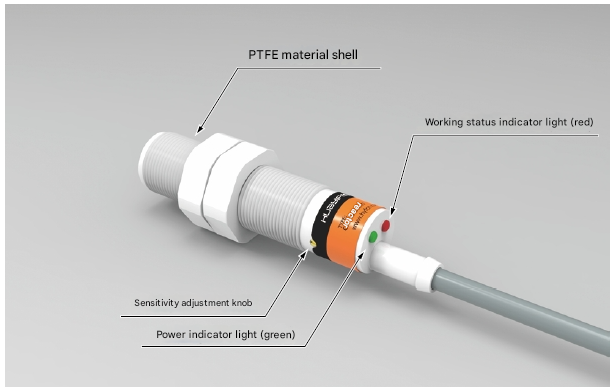

Excellent Corrosion Resistance: Made of fluororesin, it offers excellent corrosion and chemical resistance.
Detergent Resistance: Guaranteed resistance to typical cleaning agents and disinfectants used in the food industry.
Adjustable detection distance: Equipped with a sensitivity adjustment potentiometer to easily adjust the detection distance.
Stable and durable, reducing maintenance costs.
The durable Teflon housing reduces maintenance costs and withstands harsh environments.
IP67 protection:
The IP67 protection structure provides excellent water and oil resistance.
Cable output: Wire lead-out type (standard 2-meter cable).

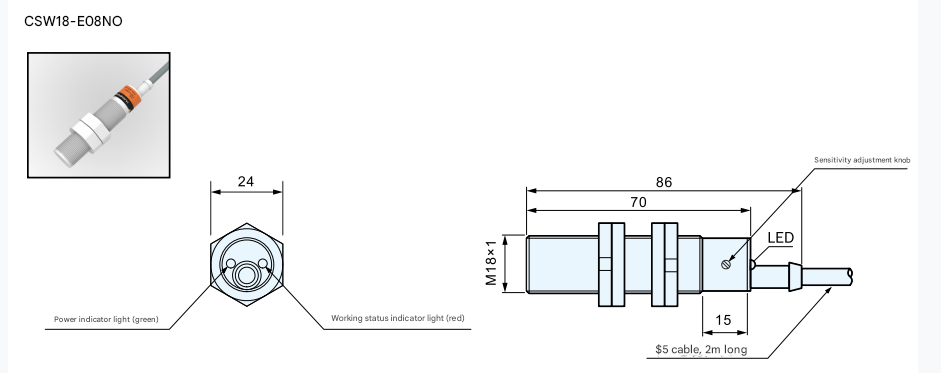

Thread Size M18
Mounting Type: Shielded
Sensing Distance: 3mm to 8mm
Sensing Object: 24*24*1mm (Iron Sheet)
Indicators: Operating Status Indicator (Red); Power Indicator (Green)
Sensing Distance Adjustment: 3mm to 8mm
Switching Mode: Normally Open, Normally Closed

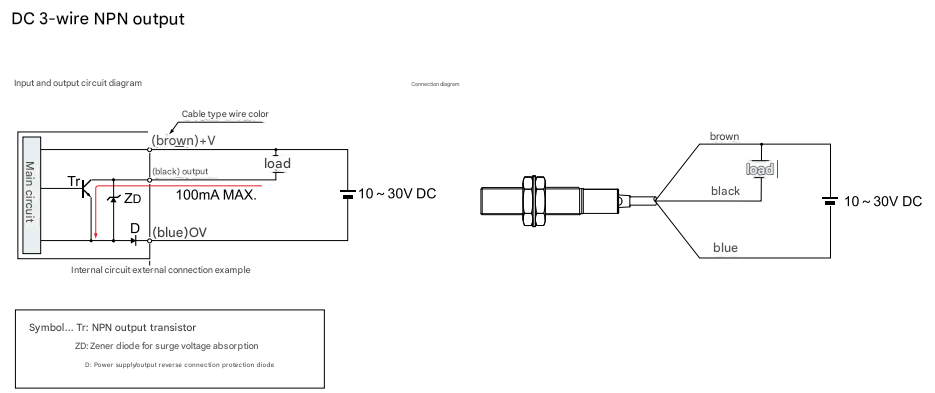

Output: NPN/PNP Output
Operating Voltage: 10-30VDC
Response Time: 20Hz
Switching Frequency: 50Hz
Repeatability: <3% (Sr)
Hysteresis: Within 20%
Current Consumption: <12mA
Load Current: 100mA
Residual Voltage: 2.5V
Leakage Current: 1mA
Protection Circuit: Surge Protection, Short Circuit Protection, Reverse Polarity Protection
Insulation Resistance: 50MΩ or more (DC 500V megohmmeter) between charging port and housing
Withstand Voltage: AC 1000V 50/60Hz for 1min between charging port and housing
Ambient Temperature: Operating: -25°C to 70°C, Storage: -25°C to +70°C
Ambient Humidity: Operating: -30°C to +85°C, Storage: -35°C to +85°C
Vibration (Durability): 10-55Hz, 1.5mm amplitude, 2 hours in each of the X, Y, and Z directions
Shock (Durability): 500m/s, 10 times in each of the X, Y, and Z directions
Connection: Lead-out (Standard 2m, extendable)
Protective Structure: IP67
Casing Material: Teflon
