Door magnetic switches monitor the open and closed status of equipment doors in real time.
Used for detecting the open and closed status of doors and other equipment. By checking the detection and non-detection status of the door magnetic switch, the open and closed status of all equipment doors can be monitored in real time.
Cost-effective

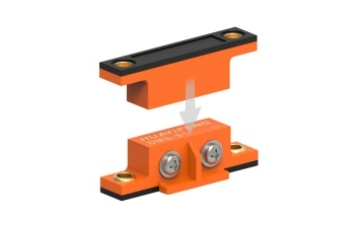

Proximity sensor with a reed switch activated by a permanent magnet

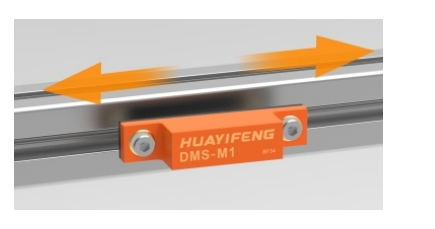

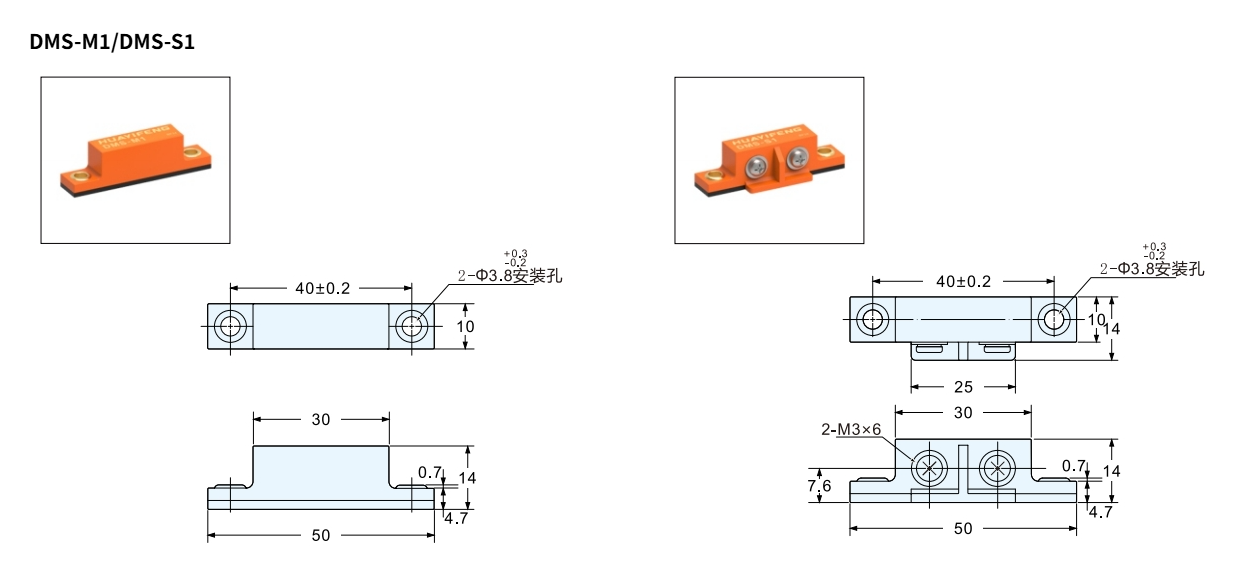

Easy installation and adjustment
The simple and lightweight design requires only two screws for easy installation. The position can be easily adjusted.

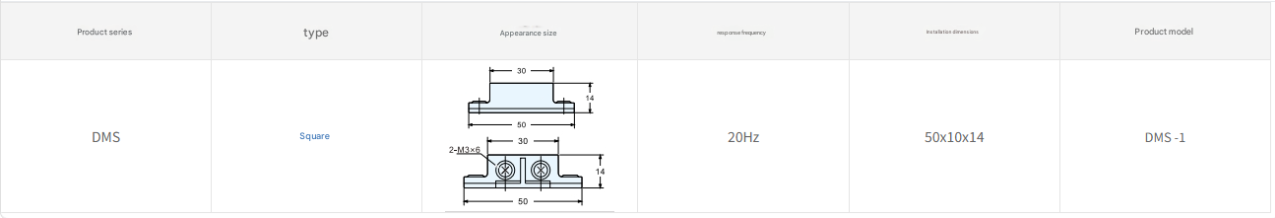

Sensing distance: 15mm
Contact circuit: 1A
Contact capacity: Maximum operating voltage: 100VDC, Maximum operating current: 0.1ADC, Maximum contact capacity: 10W (including opening and closing)
Contact withstand voltage: 250VDC/1min (leakage current: 1mA or less)
Response frequency: 20Hz or less
Contact resistance: 150mΩ or less
Withstand voltage: 1,000VAC/1min between each terminal and case
Life: 50 million cycles or more (at 24VDC/0.1A resistive load)
Vibration resistance: 10-55Hz, 1.5mm vertical amplitude, 2 hours each in X, Y, and Z directions
Shock resistance: 300m/s, 3 times each in X, Y, and Z directions
Protection structure: IEC standard IP40
Connection method: Terminal block type
Ambient temperature range: Operating and storage: -20°C to +60°C (no icing or condensation)
Ambient humidity range: Operating and storage: 35-85% RH (non-condensing)
Protection: IEC standard IP40
Connection: Terminal block
Switch/magnet: ABS
