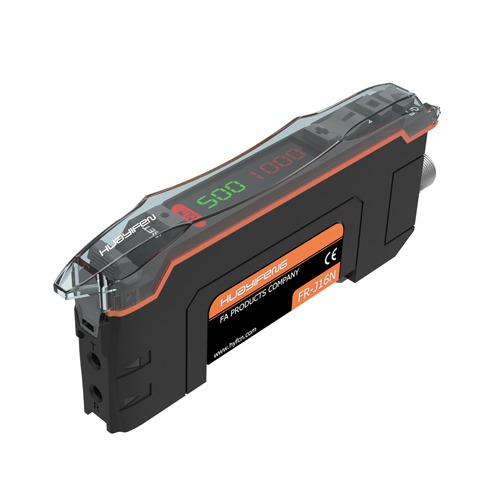

Two convenient digital screens
Two digital screens are provided, which allow you to check the reference value and the amount of light incident at the same time, and make various settings, which provides extremely high operability.
Various control functions are available to effectively reduce costs
While maintaining the original functions and performance of the FR-J16 series products, the cost of the products has been effectively reduced through structural optimization and the introduction of automated production, effectively improving the cost performance of the products.

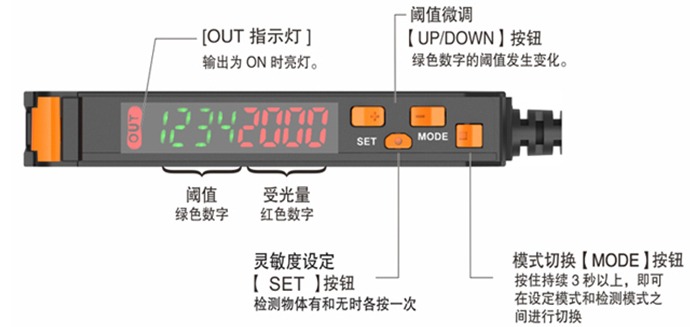

Simple and clear button design
The reference value adjustment and switch are operated by buttons, and the functions that are not frequently used are set and operated through the built-in function menu.
Adjustable light output for stable detection of tiny objects and transparent objects

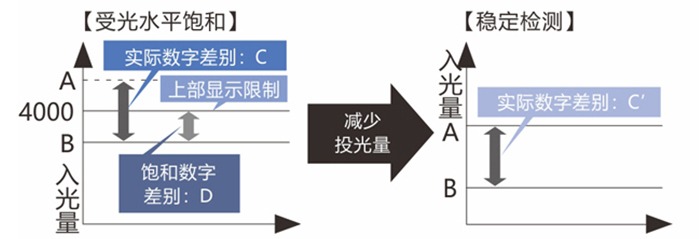

When the light level reaches saturation during close-range detection, transparent objects, or small objects, the sensor’s light output can be reduced to achieve stable detection.
Key lock function to prevent erroneous operation
Prevents operators from changing the reference value by mistake.
Outlet mode
Lead-out type (with two-meter bending-resistant cable as standard).
Product Variants
| Type | Shape (mm) / Image | NPN Model | PNP Model |
|---|---|---|---|
| Cable Type |  |
FR-J20N | FR-J20P |
Product Specifications
| Item | Specification |
|---|---|
| Light Source (Wavelength) | Red LED 640nm |
| Power Supply Voltage | DC 12~24V ±10%, Ripple (P-P) ≤10% |
| Power Consumption / Current | ≤30mA |
| Output Mode | NPN Open Collector |
| Switching Mode | L.on (Light ON) / D.on (Dark ON), Selectable |
| Switching Frequency | STD: 2kHz; LONG: 25Hz; HS: 10kHz |
| Indicator Light | 1 output status indicator (integrated in display) / 1 orange output indicator |
| Response Time | STD: 200μs; LONG: 24ms; HS: 25μs |
| Timer Functions | ON-delay, OFF-delay, ONE SHOT timer |
| Practical Functions | Parameter initialization / Key lock / Dual-point, auto/manual threshold setting |
| Advanced Functions | Base value tracking / Adjustable emission frequency (anti-interference) / Offset setting / Area detection |
| Load Current | ≤100mA |
| Insulation Resistance | ≥20MΩ (DC 500V megger) between charged parts and housing |
| Operating Temperature | -10°C to +50°C (No freezing) |
| Operating Humidity | 35% to 85% RH |
| Ambient Light Resistance | Incandescent lamp: ≤20,000lx; Sunlight: ≤30,000lx |
| Protection Circuit | Surge protection, Short-circuit protection, Reverse polarity protection |
| Shock Resistance | 500 m/s², 2 hours in each of X, Y, Z directions |
| Vibration Resistance | 10~55Hz, amplitude 1.5mm, 2 hours in each of X, Y, Z directions |
| Connection Type | M8 3-pin connector with cable |
| Material | PC (Polycarbonate) |

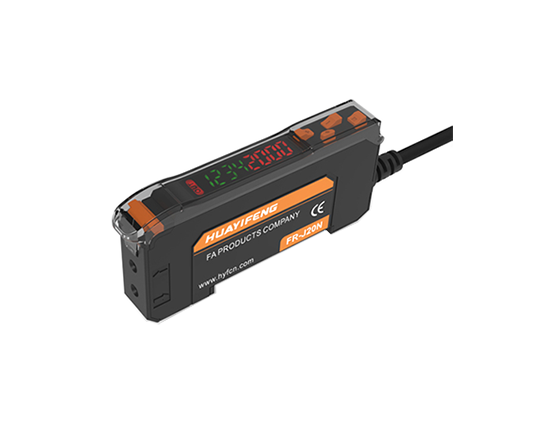

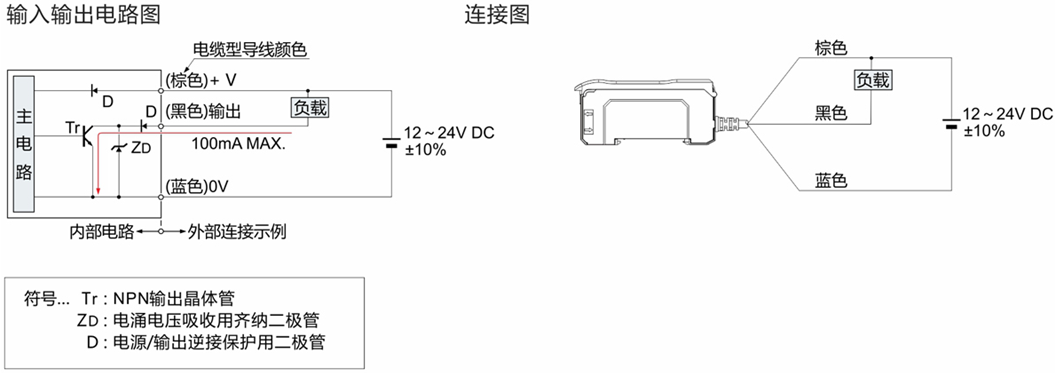

FR-J20N
DC 3-wire NPN output
