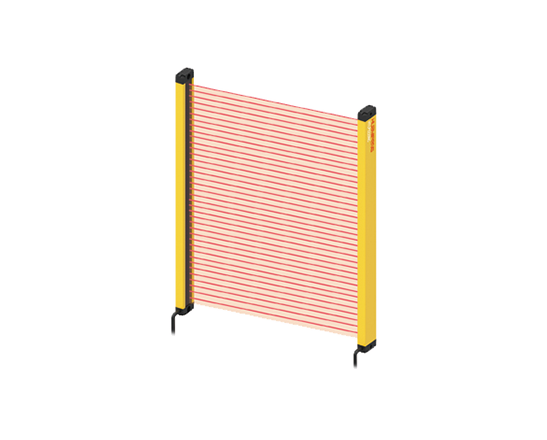

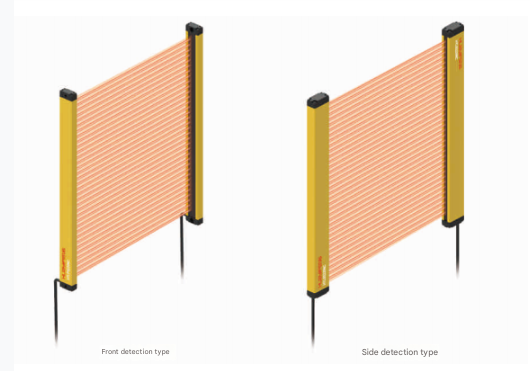

Choose from two types: front detection and side detection.
This model offers a space-saving design similar to conventional models. Two models, front detection and side detection, are available, allowing you to choose the model based on the installation location.
Rugged & Ultra-Thin Structure

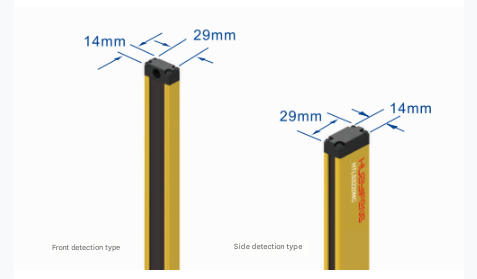

This industry-first ultra-thin optical encoder, at 14mm thick, is ideal for applications requiring tight spaces, close-fitting installations, or concealed locations. It can be used in AOI (Automated Optical Inspection) equipment for protection or as a start signal. While conventional rugged encoders typically have a thicker structure, this product achieves a super-thin design.
Thinner, wider range of use

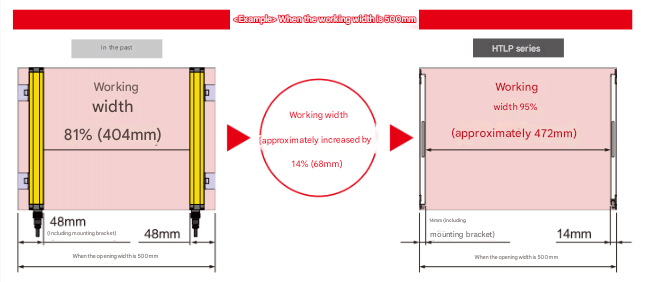

The thinner light curtain sensor increases the device’s working width, significantly improving workability.

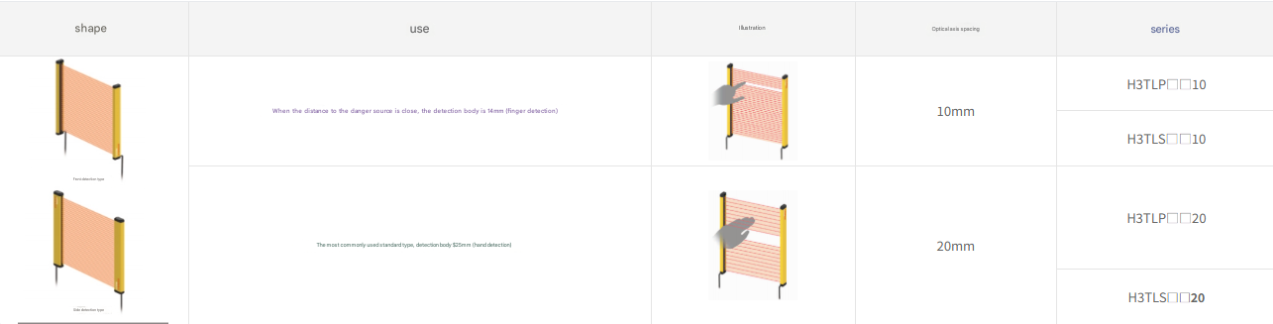

Custom shapes, lengths, and beam counts based on customer needs.
For models not listed in the product specifications, customers can contact sales staff to customize the shape, length, and beam count to meet their specific needs.
Light Source: Infrared LED (peak emission wavelength: 940nm, modulated)
Number of Optical Channels
8-88 lamps, in increments of 2
Optical Channel Spacing: 10mm

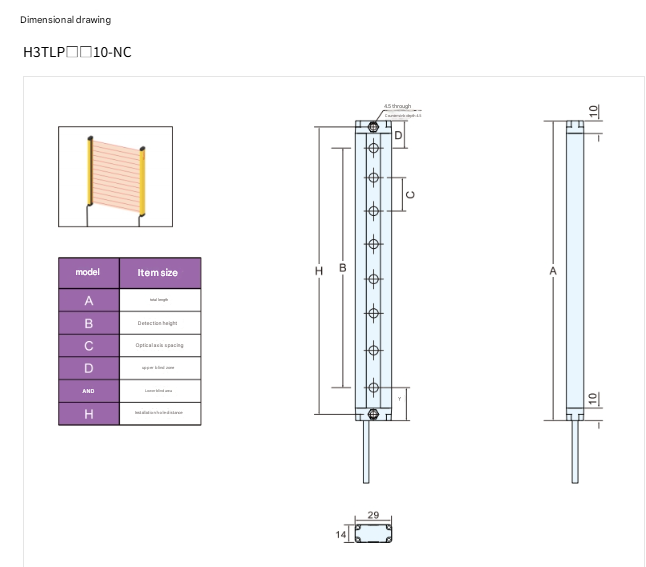

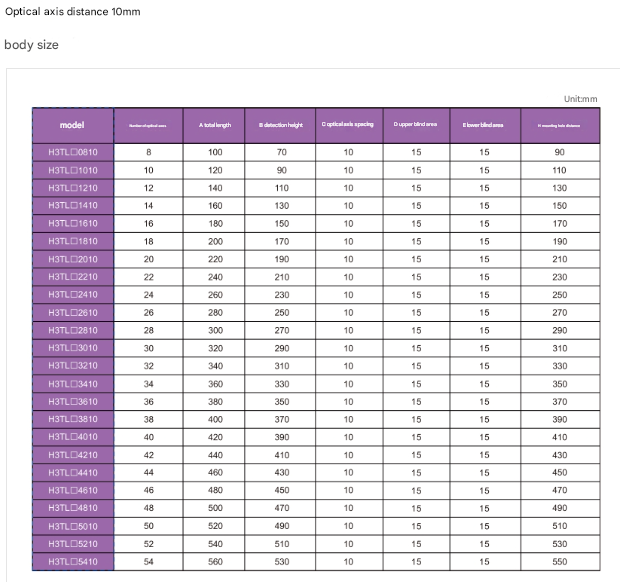

Protective Height: Protective Height H = (N-1) * 10mm, where N is the number of optical channels
Protective Distance: 0.1-3.0m
Minimum Detection Object: Opaque objects φ15mm or larger (completely shielded from light)

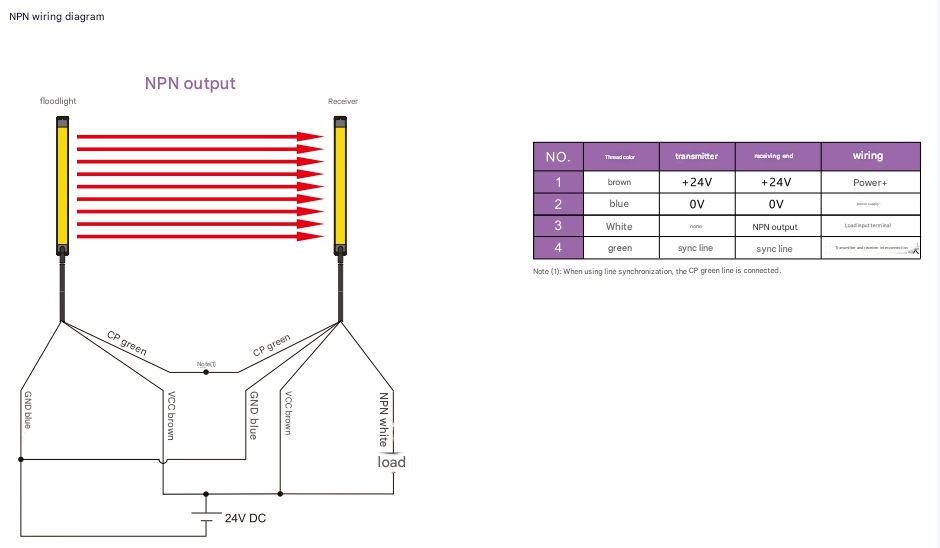

Output Mode: 1. NPN Transistor Open Collector Output (Normal Closed) Maximum Sink Current: 200mA; Residual Voltage: 2V or less (at 200mA sink current); 1.2V or less (at 100mA sink current)
- PNP Transistor Open Collector Output (Normal Closed) Maximum Source Current: 200mA; Residual Voltage: 2V or less (at 200mA source current); 1.2V or less (at 100mA source current)
Synchronization Type: Linear
Response Time T = (N + 1) * 1.2 (where N is the number of optical axes). For example, for the H3TL1610-NC, the response time is: T = (16 + 1) * 1.2 = 20.4ms.
Operating voltage: DC 12-24V ±10% fluctuation, (p-p) less than 10%
Current consumption: <50mA
Power consumption: <3W
Residual voltage: <2V when load current <200mA
Load current: <200mA
Protection circuit: Surge protection, overcurrent, short circuit protection, and reverse polarity protection.
Operating temperature: -10°C to 55°C (non-condensing).
Operating humidity: Relative humidity: <85% at 20°C.
Ambient illumination: Incandescent lamp: <6000 lux (incident angle |>5°), Sunlight: <10000 lux (incident angle |>5°), LED light: <6000 lux.
Electrical fast transient/burst immunity (EFT/B): Pulse voltage: ≤2kV/5kHz, ≤2kV/100kHz
Electrostatic Discharge (ESD) Contact ≤4000V
Surge (Surge) ≤500V
Radiated Radio Frequency Electromagnetic Field Immunity (RS) ≤10V/m
Conducted Radio Frequency Field Immunity (CS) ≤10V
Power Frequency Magnetic Field Immunity (PFMF) ≤30A/m
Vibration Resistance 10-55Hz, 1.5mm amplitude, X/Y/Z axes, 2 hours each
Ingress Protection IP50
Material: Housing: 6063 aluminum alloy, high-gloss yellow paint finish, End caps: PC, Window: PMMA, 940nm translucent brown
