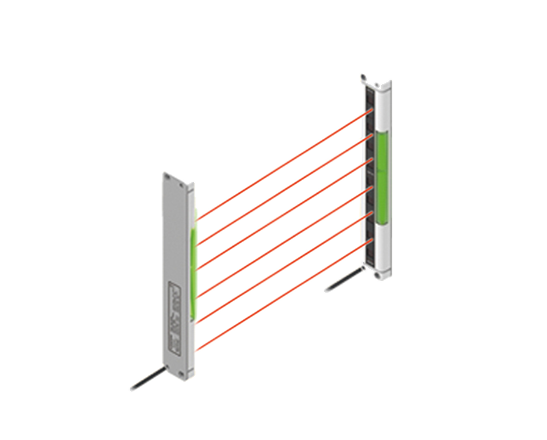

Available in four detection heights

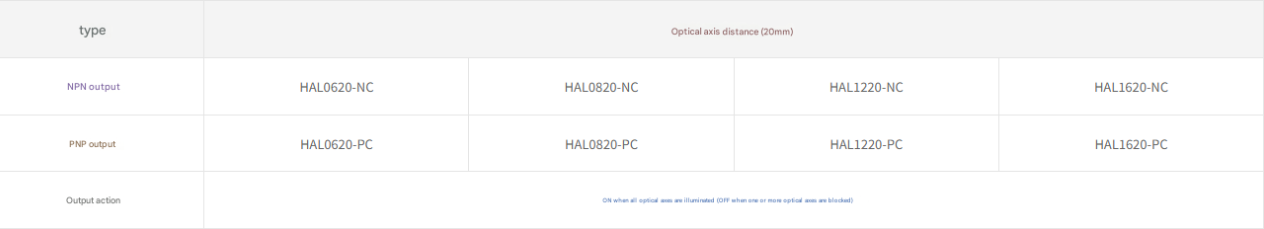

This series includes 6, 8, 12, and 16 optical axis models. Available in detection heights of 100mm (6 optical axes), 140mm (8 optical axes), 220mm (12 optical axes), and 300mm (16 optical axes).
Ultra-thin design at only 13mm thickness

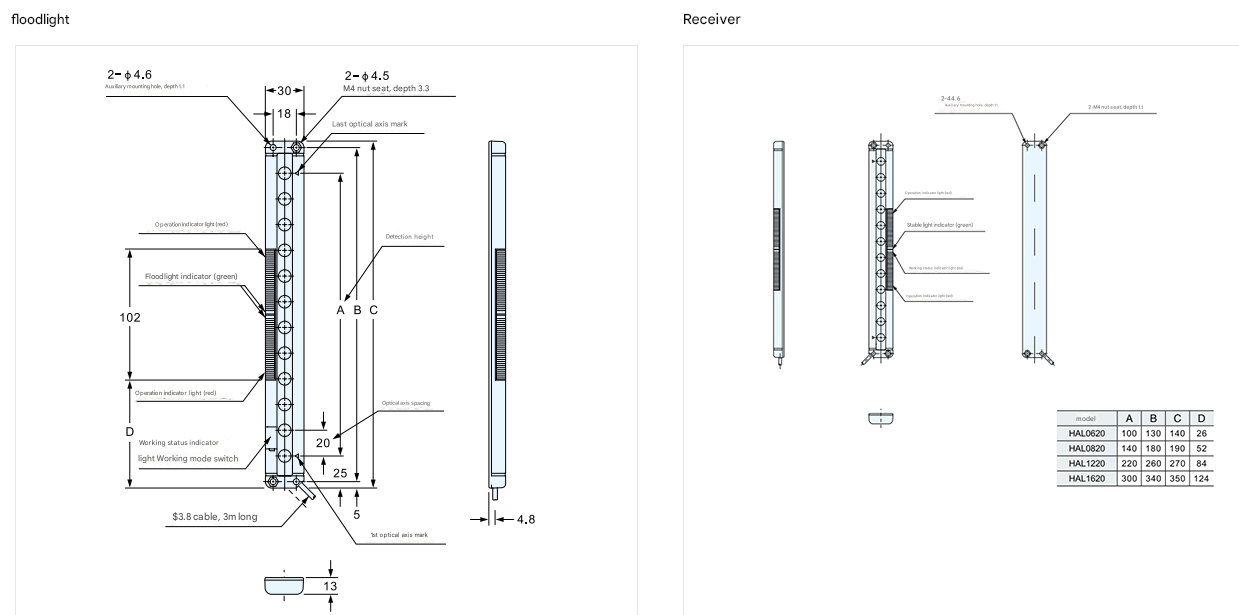

At only 13mm thick and 30mm wide, it’s perfectly compatible with your equipment.

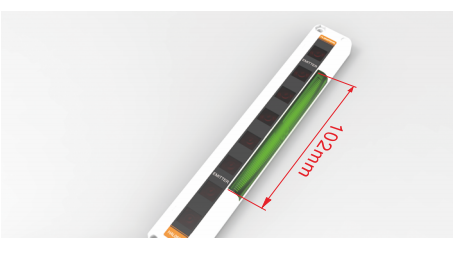

Large, Clearly Visible Operation Indicators
Easily visible operation indicators are located on both the transmitter and receiver, making it easy to see when the output is being tested.
Interference Prevention for Parallel Installation

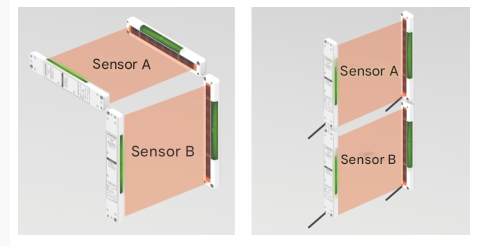

Set the two sensors to different emission frequencies to prevent mutual interference. Using two sensors simultaneously allows for detection over a wider area. The set frequency is determined by the number of illuminated emission indicators.
Selecting the light emission frequency and operation indicator light behavior
The light emission frequency and operation indicator light behavior can be selected by setting the operating mode switch.
Number of optical axes: 6
Detection height: 100mm
Detection distance: 4m
Optical axis spacing: 20mm
Detection object: Opaque objects Ø30mm or larger (completely transparent objects)
Operating voltage: 12-24V DC ±10%, ripple P-P 10% or less

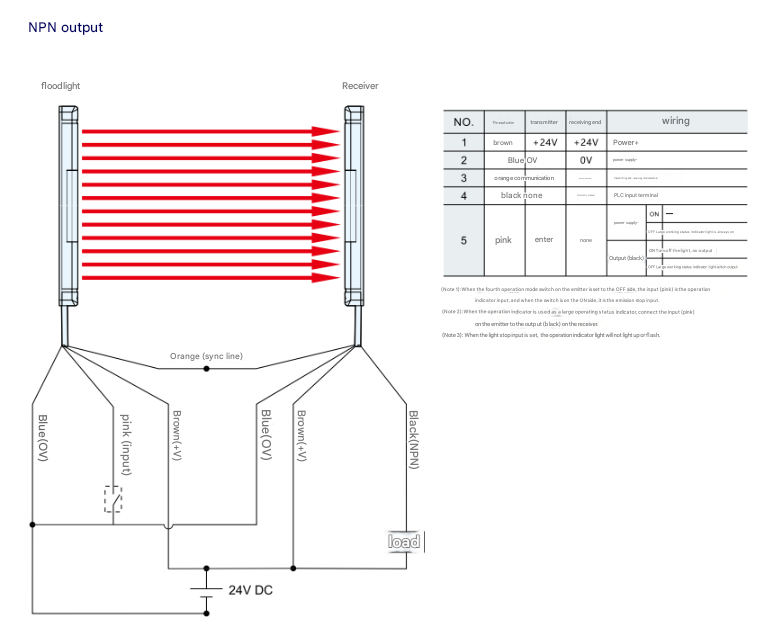

Output mode: Switching output (NPN/PNP)
Synchronization type: Linear
Response time: 10ms or less (12ms or less when using the interference prevention function)
Operating voltage: 12-24V DC ±10%, ripple P-P 10% or less
Current consumption: <100mA
Power consumption: <2W
Residual voltage: <1.5V (at a load current of 100mA)
Circuit protection: Surge protection circuit, short-circuit protection, reverse polarity protection
Load current: <100mA
Insulation resistance: 20MΩ or more (DC500V megohmmeter) between charging unit and case
Withstand voltage: AC1000V 1 minute between all power terminals and the housing.
Ambient operating temperature: -10°C to +55°C (no icing or condensation), Storage: -10°C to +60°C.
Ambient humidity: 35% to 85% RH, Storage: 35% to 85% RH.
Ambient illumination: Incandescent lamp: 3000 lux on the light-receiving surface or less.
Protective structure: IP40.
Vibration (endurance): 10-55Hz, 1.5mm double amplitude, in the X, Y, and Z directions for 2 hours.
Shock (endurance): 500m/s2, 10 times each in the X, Y, and Z directions.
Connection method: Wire lead.
