Counting Small Moving Parts

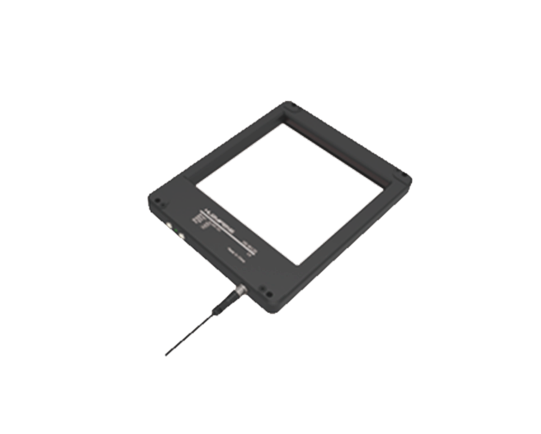

The frame-type photoelectric sensor utilizes the principle of mirror reflection to distribute infrared light throughout the entire detection area, enabling comprehensive detection and solving the problem of counting small moving parts.
Detectable Objects
It can detect small objects, down to a sphere with a diameter of 2mm.
Measurable Properties
It can detect translucent and opaque objects; it can detect metals, non-metals, and magnetic and non-magnetic objects.

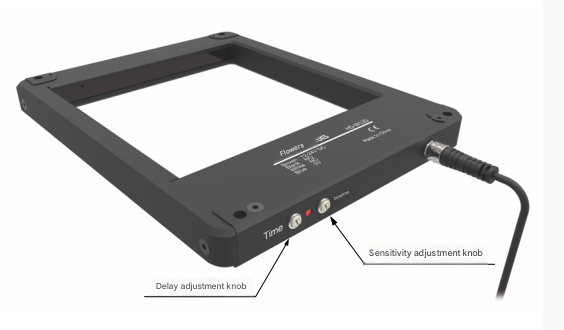

Integrated Control and Sensor Head
The sensor head features built-in control circuitry, making sensitivity and delay adjustments more convenient and simplifying installation.
