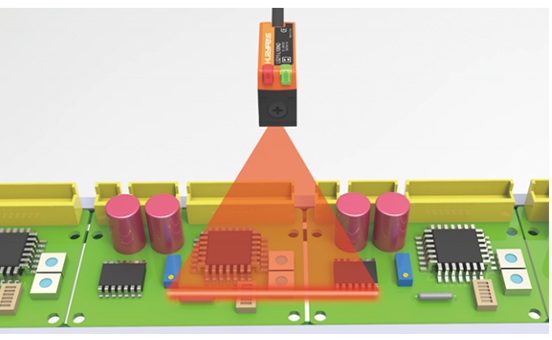

Linear spot, suitable for the PCB industry

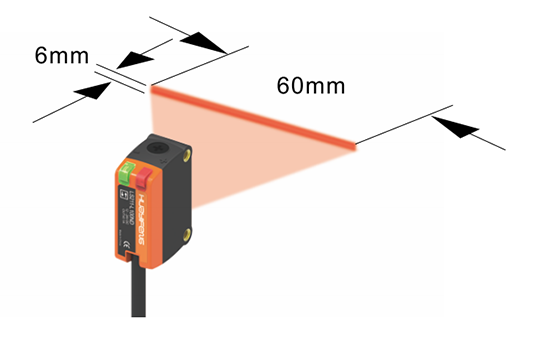

The 6mm x 60mm linear spot design is less susceptible to substrate cutouts and cutouts, enabling stable inspection of products with cutouts or uneven surfaces.
Perfect application of the BGS function
It is minimally affected by workpiece color; stable inspection is possible even on production lines with unevenly colored workpieces.
Stable detection of high-gloss, curved, and uneven targets
When detecting high-gloss targets, a small beam spot is easily affected by the mounting angle, resulting in extremely unstable output. However, a long beam spot, due to its large spot area, provides stable detection. Similarly, when detecting targets with holes or grooves, a small beam spot will cause the output to fluctuate as the target passes, while a long beam spot provides stable detection.
Automatic anti-interference function

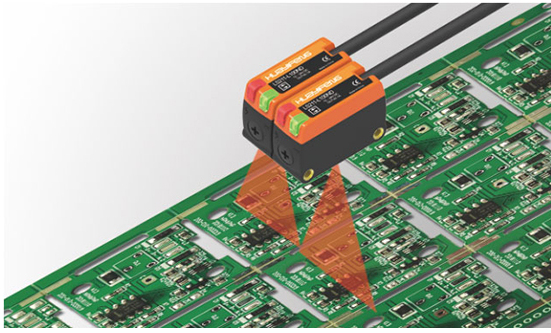

Anti-interference design allows up to two sensors to be mounted close together.
