Appearance Advantages
The thin design allows for flexible installation near automatic labeling machines, ensuring higher process accuracy. The compact housing saves installation space.

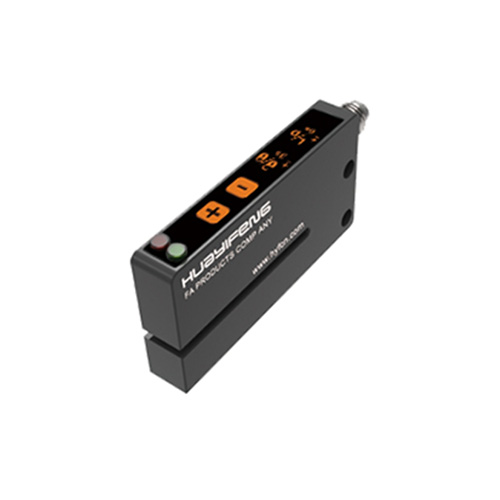

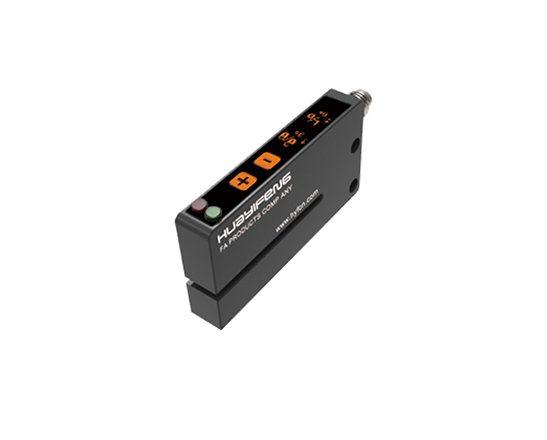

Sturdy, integrated housing
The sturdy, integrated housing provides exceptional reliability. The aluminum housing, with an IP65 protection rating, meets all requirements of harsh industrial environments.
Sturdy U-shaped design eliminates the need for optical axis alignment. The emitter and receiver are housed in the same sensor, eliminating the need for optical axis alignment.
Highly Efficient Response
The fast response time of 50µs and high resolution ensure reliable detection even at high speeds.
Interference Resistance
The infrared light source provides excellent immunity to ambient light interference.
Easy Adjustment
Settings are simple using the self-learning function or the +/- buttons.

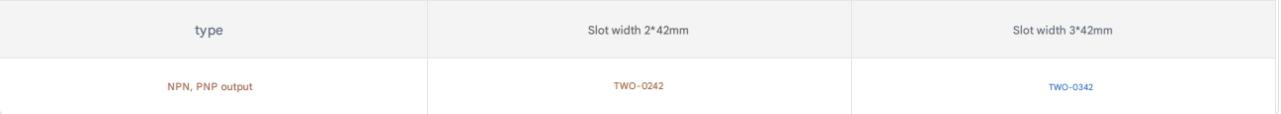

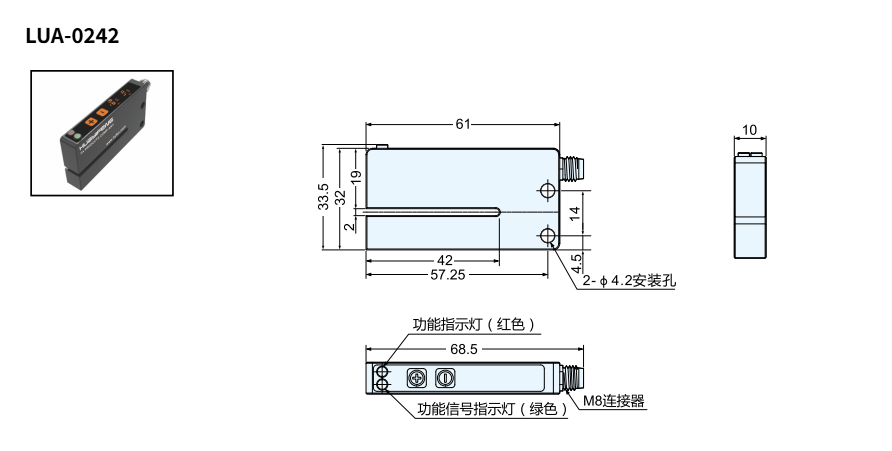

Groove Depth/Width 2mm x 42mm
Operating Voltage DC 12V-24V
Current Consumption 40mA
Light Source: Infrared (940nm)
Switching Frequency ≤10kHz
Switching Mode: Shade ON or Light ON

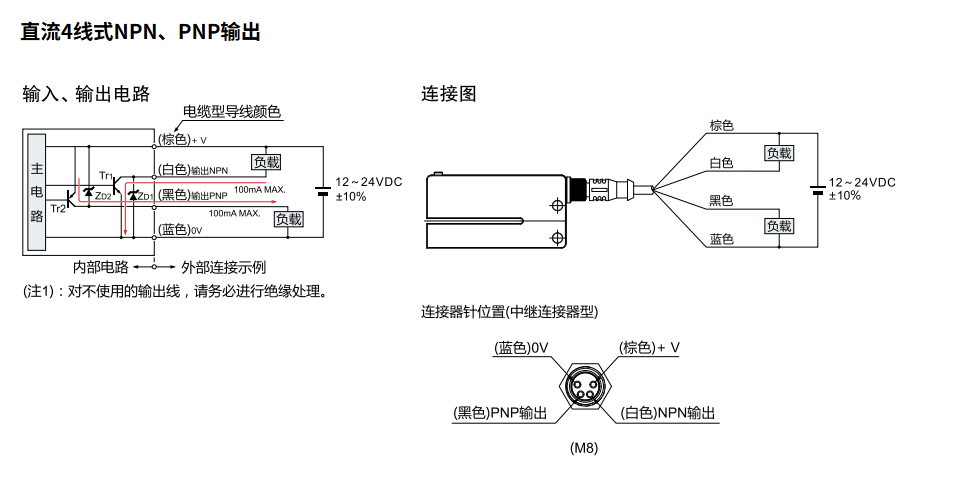

Output Mode: 1 NPN Output, 1 PNP Output
Load Current 100mA
Response Time ≥50µs
Insulation Resistance: 20MΩ or greater (DC 500 megohmmeter) between charging port and housing
Withstand Voltage: AC 1000V/1min, 50-60Hz, between charging port and housing
Operating Temperature: 45 to 85% (non-freezing) RH
Operating Humidity: -20 to 60°C
Ambient Light Safety: Sunlight (10,000Lx)
Circuit Protection: Surge Protection Circuit, Short Circuit Protection, Reverse Polarity Protection
Connection: M8, 4-pin Plug
Enclosure Rating: IP65
Material: Aluminum
