Detection Principle

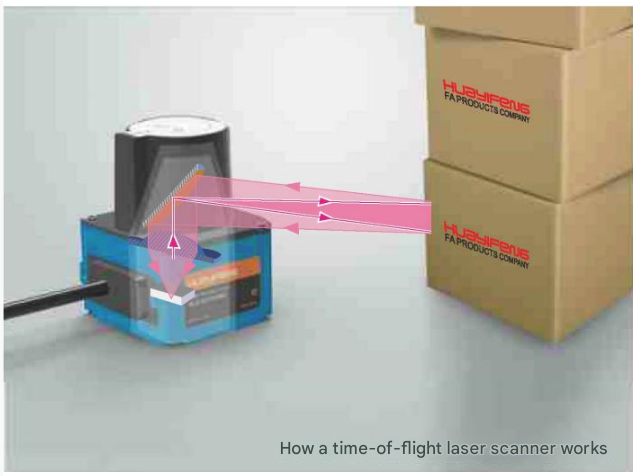

The TOF (Time of Flight) method measures distance based on the time it takes for a laser to reflect back.
Wide Range Protection

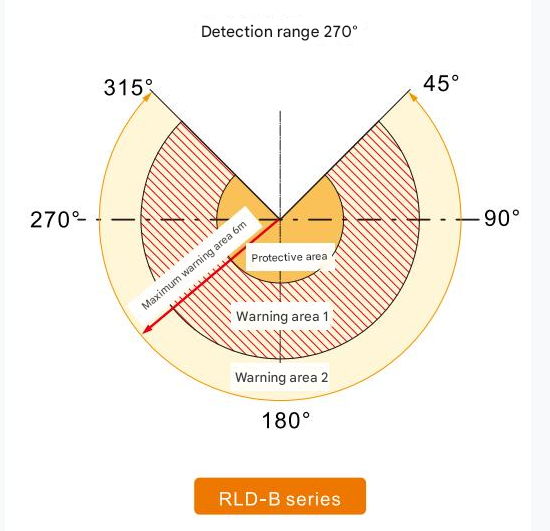

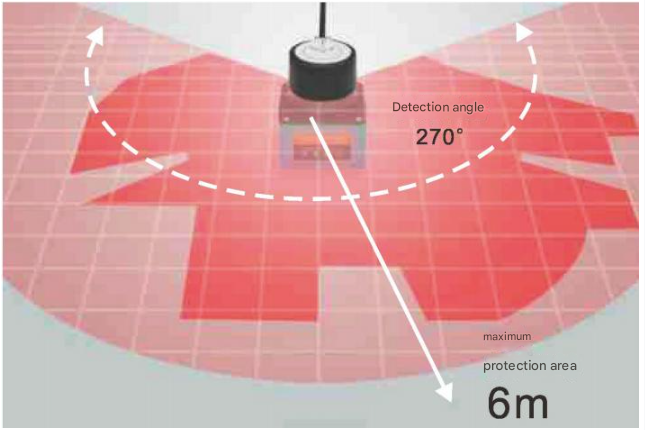

Various protection zones, up to 6 meters, with a 270° detection angle

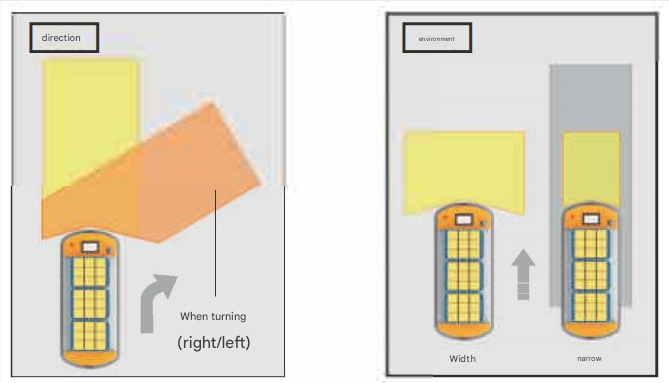

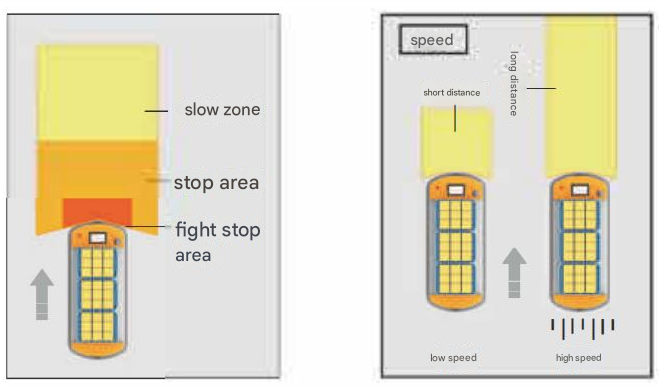

Multiple protection zones can be switched.
Multiple zones (protection zones and warning zones) can be selected via remote control input. Each zone group can have one protection zone and two warning zones, for a total of three zones. A total of 96 zones can be set (up to 32 zone groups, each with three zones).
Laser Scanners for Easily Setting Areas
Laser scanners make it easy to set protective and warning zones, allowing them to be installed in a variety of locations.

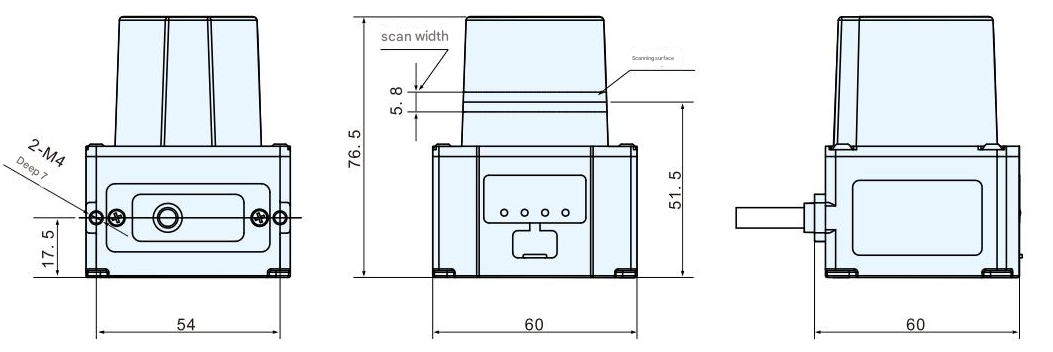

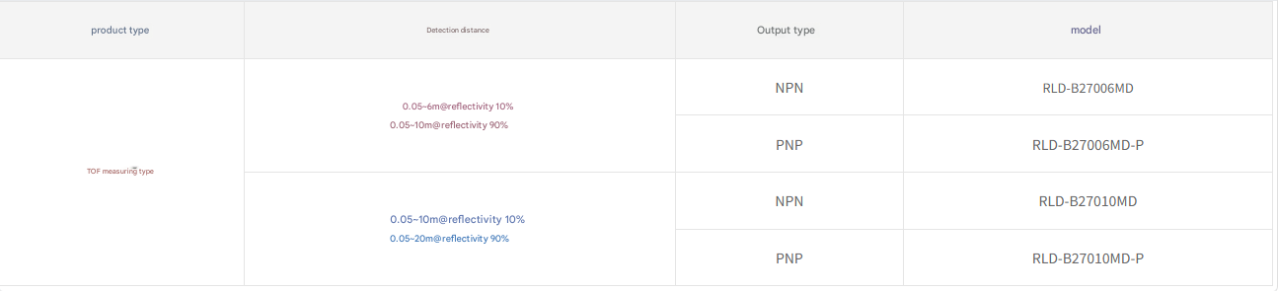

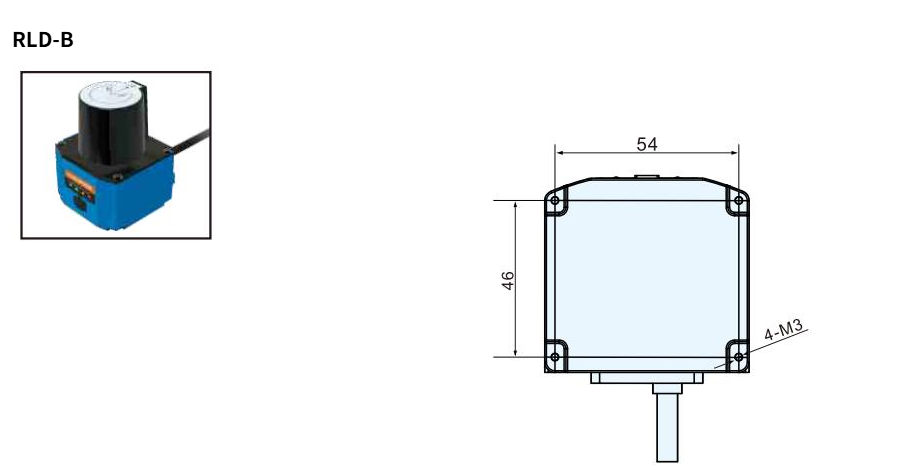

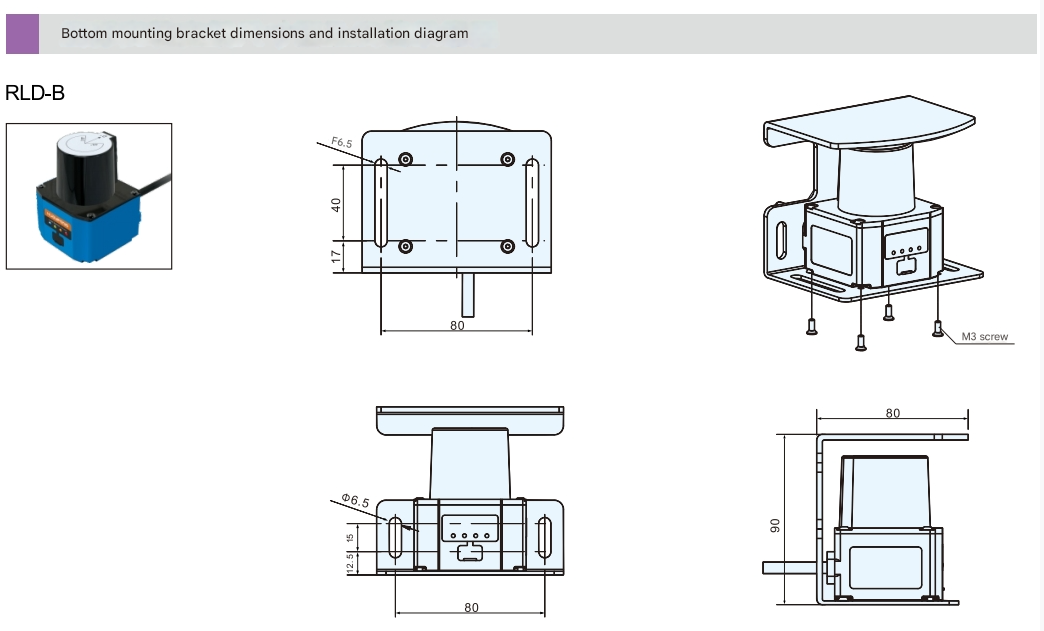

Working Principle: Time-of-Flight (TOF)
Detection Range: 0.05-6m @ 10% reflectivity; 0.05-10m @ 90% reflectivity
Light Source: Infrared Laser (905nm)
Accuracy: ±20mm
Repeatability: ±10mm
Response Time: 40ms
Laser Class: Class 1 (EN 60825-1 (2007-10))
Measuring Angle: 270°
Working Range: 0.05-10m
Protective Range: 6m
Angular Resolution: 0.5°
Scanning Frequency: 25Hz
Object Shape: Virtually any shape (minimum detectable object can be calculated based on distance)
Number of Zone Groups: Standard: 32 zones x 3 zones
Simultaneous Evaluation Zones: Three zones per group
Input Delay: Selectable
Output Delay: Selectable
Configuration Port: USB (Micro-B)

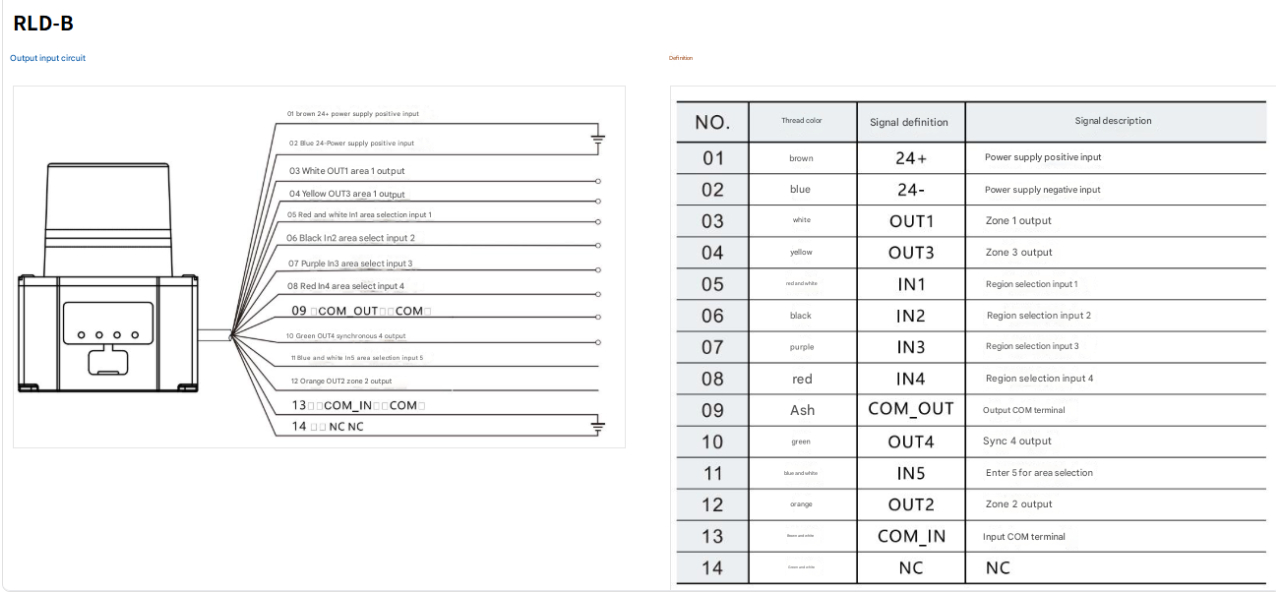

Number of Inputs: 5 NPN & PNP Inputs
Number of Outputs: 3 zone outputs + 1 synchronous output (NPN & PNP selectable)
Operating Voltage 10-30VDC
Input Type: NPN & PNP
Output Type: NPN & PNP (optional)
Indicator Light: Blue: Operating Indicator; Yellow: Zone 2 Output Indicator
Power Consumption: <3W
Operating Temperature: -20-55°C (non-frost, non-condensing)
Storage Temperature: -30-60°C
Ambient Light Intensity: 80,000 Lux
Enclosure Rating: IP65
Vibration Resistance: Double Amplitude: 1mm, 10-55Hz, 2 hours per axis
Shock Resistance: 196mJ/m², 10 shocks in X, Y, and Z directions
