In modern industrial automation, production lines are becoming faster and more complex. At the same time, machine density is increasing across factories.
As a result, safety risks in human-machine interaction zones are also rising.
A safety light curtain sensor is designed to solve this challenge. It creates a non-contact infrared detection field. When the beam is interrupted, the system stops the machine immediately.
Safety light curtain sensor wholesale solutions are designed for OEM manufacturers, system integrators, and industrial equipment builders. In addition, they support large-scale and standardized deployment across multiple production lines.
The H3EL series from Huayifeng is built for continuous industrial environments such as packaging, automotive, semiconductor, and logistics automation systems.
Industrial Applications
Safety light curtain systems are widely used in industrial environments where operators interact with automated machines.
For example, the H3EL series is suitable for OEM integration across different industries.
Typical applications include:
- Packaging cutting and sealing systems

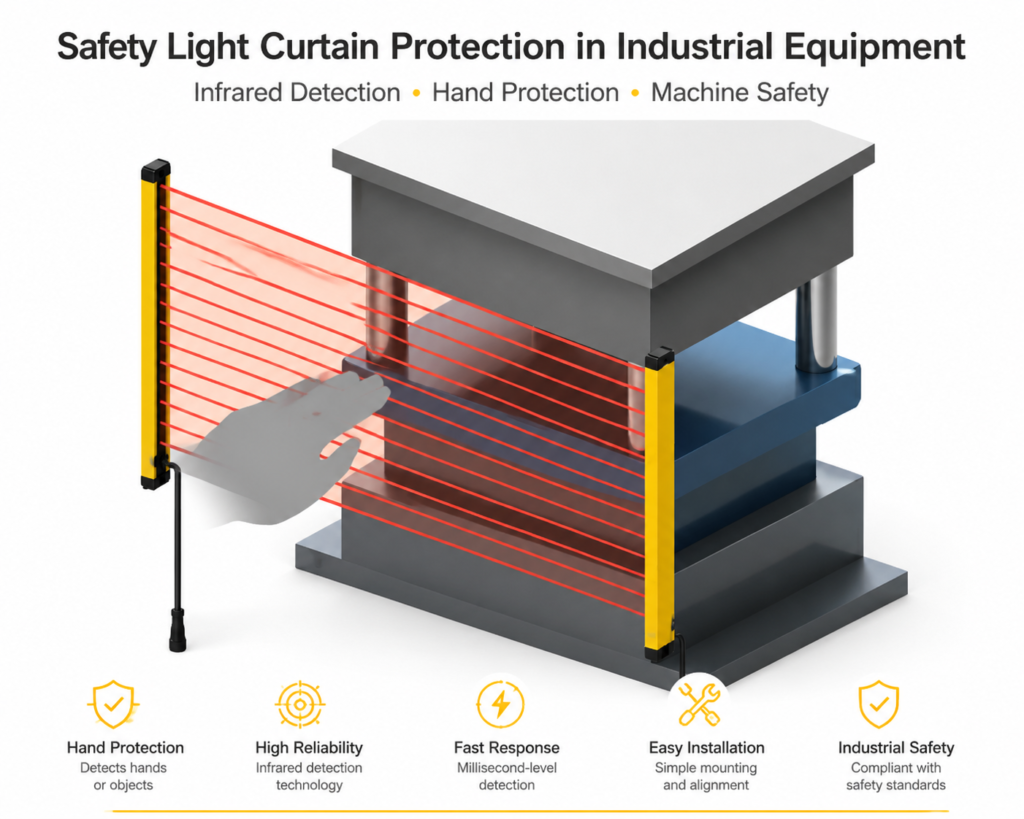

- Automotive stamping and press machines
- Semiconductor wafer handling systems
- 3C electronics assembly lines
- Lithium battery production equipment
- Warehouse sorting and conveyor systems
Each application has strict safety requirements. Therefore, the system must maintain stable detection under harsh conditions.
In particular, it must handle:
- Dust and vibration exposure
- Electromagnetic interference
- High-speed production cycles
Why H3EL Series Fits OEM Industrial Deployment
Beyond selection criteria and technical compliance, OEM manufacturers also require safety components that perform consistently in real production environments.
The H3EL series safety light curtain is engineered specifically for large-scale industrial automation systems where repeatability and long-term stability are critical.
It delivers stable optical performance across multiple installations, ensuring consistent detection accuracy in every unit.
Thanks to its dual-channel safety architecture and anti-interference optical design, the system maintains reliable operation even in complex industrial environments with vibration, dust, and electrical noise.
In addition, its modular structure and standardized output options make integration with different PLC systems straightforward, reducing engineering effort during machine design.
The fast response time and precise beam control also help manufacturers improve machine safety without reducing production efficiency.
As a result, the H3EL series is widely adopted in OEM equipment where reliability, repeatability, and long-term operational stability are essential.
H3EL Series Technical Features
The H3EL series is designed for industrial safety applications that require stable optical detection and fast response.
Key features include:
- Dual-channel safety output architecture
- 850nm infrared modulated sensing system
- Line-synchronized anti-interference design
- 6063 aluminum alloy housing for durability
- Strong resistance to EMI and vibration
- Fast beam interruption response system
In addition, the system is optimized to reduce false triggering in continuous production environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Optical axis spacing | 10mm / 20mm / 40mm |
| Detection range | 0.1m – 2.5m |
| Minimum object detection | Ø15mm opaque object |
| Response time | T = (N + 1) × 1.2 ms |
| Output type | NPN / PNP normally closed |
| Operating voltage | DC 12–24V ±10% |
| Housing material | Aluminum alloy 6063 |
The response time increases with the number of optical axes. Therefore, system designers must consider machine speed carefully.
Safety Light Curtain vs Mechanical Guarding
| Feature | Safety Light Curtain | Mechanical Guard |
|---|---|---|
| Access flexibility | High | Low |
| Automation compatibility | High | Limited |
| Maintenance requirement | Low | Medium |
| Installation efficiency | Fast | Slower |
| Real-time detection | Yes | No |
In modern automation systems, safety light curtains are preferred. Meanwhile, mechanical guards are still used in low-automation environments.
OEM Selection Guide
Selecting the correct model depends on machine type, risk level, and system layout.
Step 1: Define hazard zone
First, identify all human-machine interaction areas.
Step 2: Choose resolution level
- 10mm pitch → finger-level protection
- 20mm pitch → hand-level protection
- 40mm pitch → body-level protection
Step 3: Match installation distance
Then ensure the detection range fits machine design.
Step 4: Confirm PLC compatibility
Next, select NPN or PNP output based on control system.
Step 5: Validate response time
Finally, apply the formula:
T = (N + 1) × 1.2 ms
This ensures safe stopping performance.
Certifications & Engineering Reliability
Industrial safety devices must perform reliably in real production environments. Certifications alone are not sufficient.
The H3EL series is manufactured under ISO and CE quality systems. This ensures stable production consistency across batches.
However, real reliability comes from long-term industrial operation.
For example, the system maintains stable performance under vibration, dust, and electrical noise.
In addition, each unit undergoes optical alignment testing before shipment. This ensures consistent detection accuracy.
As a result, the system performs reliably in high-speed automation lines where uptime is critical.
FAQ
What is a safety light curtain sensor?
It is a non-contact safety device that creates an infrared detection barrier. When the beam is interrupted, the machine stops immediately.
Why do OEMs prefer wholesale procurement?
Because it ensures consistent specifications across production lines. In addition, it supports standardized system integration.
How do I choose the right model?
First evaluate machine speed and safety level. Then consider installation distance and PLC compatibility.
Conclusion
Safety light curtain sensor wholesale solutions are essential for modern industrial automation safety systems.
The H3EL series from Huayifeng provides stable and scalable machine guarding solutions for OEM manufacturers and system integrators.
Therefore, it supports safe and reliable operation across packaging, automotive, semiconductor, and logistics automation environments.
